Roof Color Steel Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : Gracias

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 20sets per month

Delivery Time : 20-30work days

Model Number : steel roll forming machine

Certification : CE

Packaging Details : Standard export package

Voltage : 380v50/60hz

Use : Roof,Wall

Condition : New

Tile type : Colored Steel

After-sales service provided : Online support

Control system : Totally Automatic

Warranty : 1 Year

Color : As customer requirement

Contact Now

Roof Color Steel Roll Forming Machine

Technical parameters:

NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 1000mm
thickness 0.3-0.6mm
Yield stress 240-350Mpa
2 Product Cover width 840±2mm
Wave height 23±1mm
Pitch width 210±1mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/508mm
Max coil width 1250mm
Max capacity 10T
4 Main machine Roller 70mm
45#steel chrome plated
Main machine structure Guide column or wallboard
5 Power requirement Main motor 3kw
Hydraulic pump

4kw

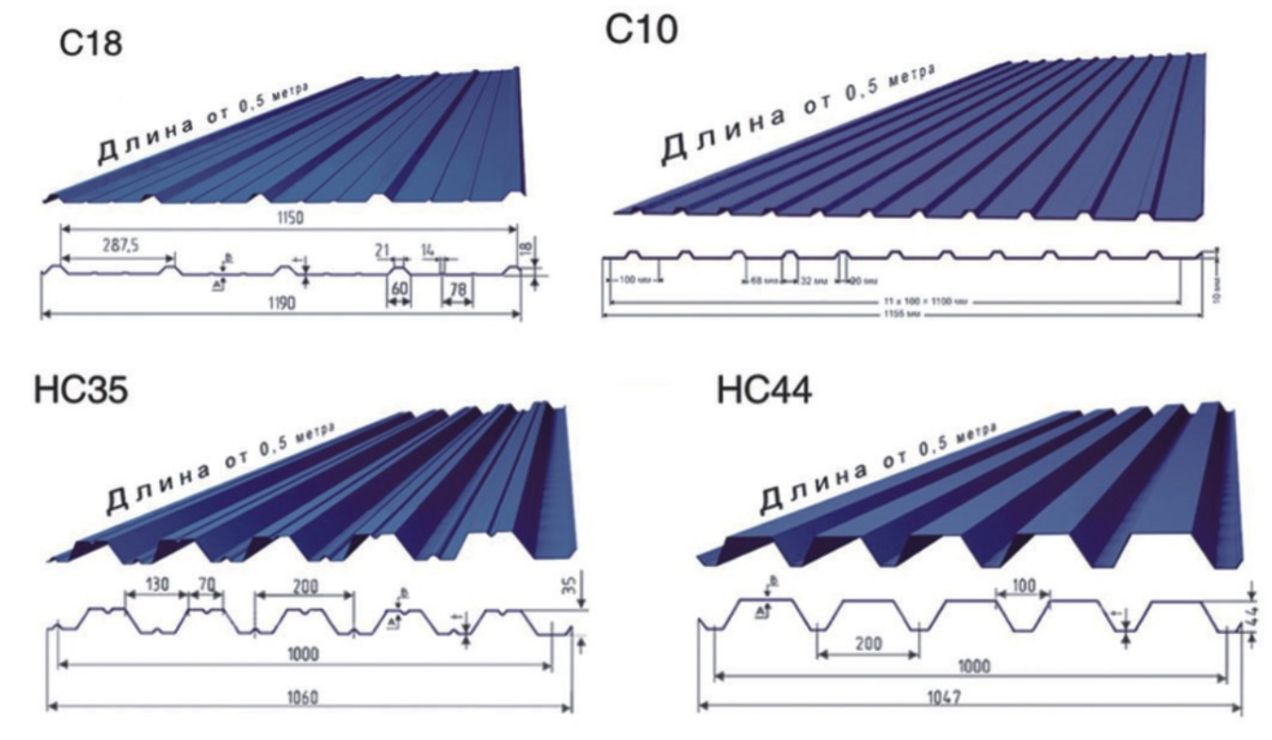

Profile drawing:

India

Roof Color Steel Roll Forming Machine

Nigeria

Roof Color Steel Roll Forming Machine

Russia

Roof Color Steel Roll Forming Machine

Roof Color Steel Roll Forming Machine
